Power ComponentsR&DRef. daq-pt400

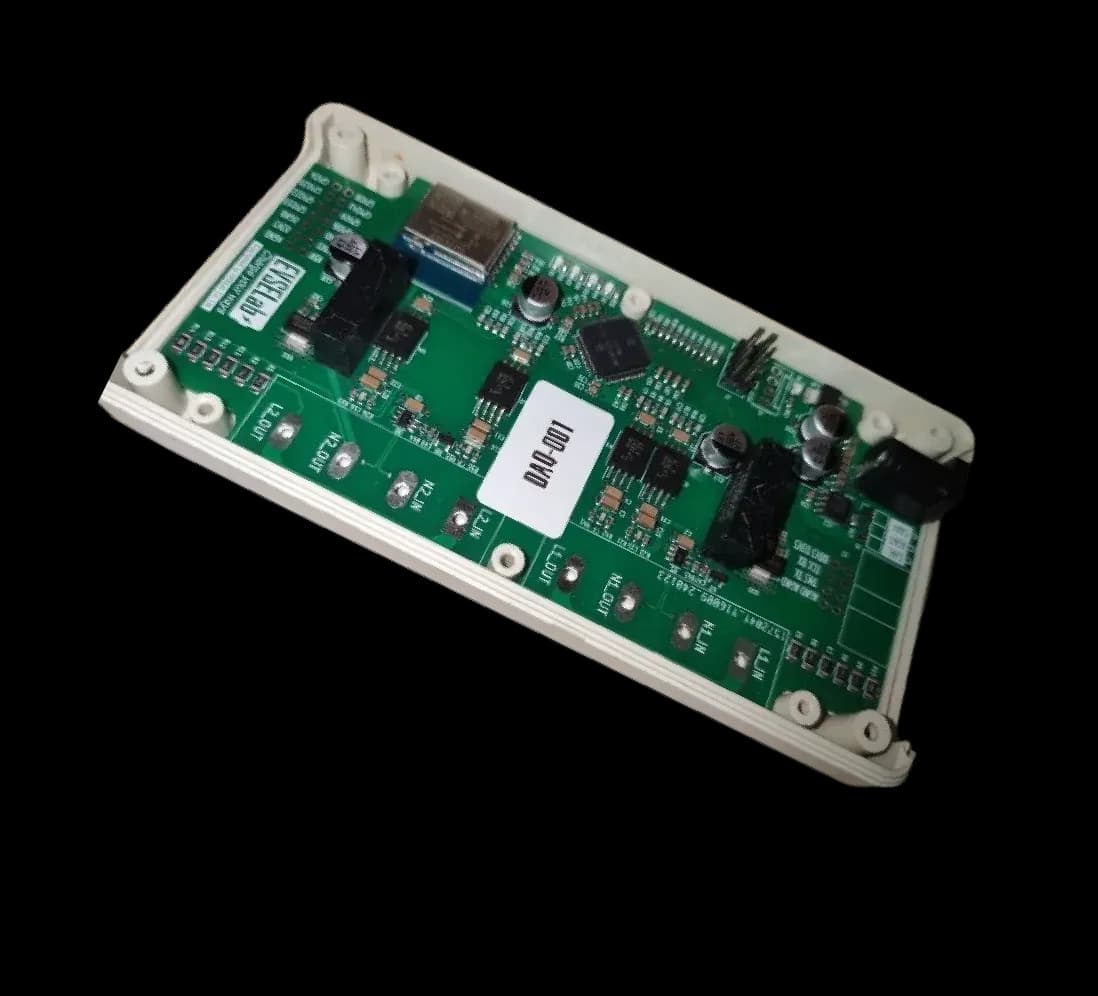

DAQ Power Quality Analyzer (PT400)
Compact analyzer for voltage, current, power, PF, harmonics and energy.
Specifications
- Supply
- 5 V / 2 A
- AC voltage range
- 90–265 V
- AC operating current
- 10 Arms max (scalable)
- AC frequency
- 47–63 Hz
- Max harmonic order
- 23rd (scalable)
- DC voltage range
- 1–400 V
- DC operating current
- 10 A max
- Measurement error
- < 5%
01 /Overview
Product details
The PT400 DAQ is a compact power-quality analyzer that measures voltage, current, power, power factor, harmonic distortion and energy consumption on both AC and DC, powered from a simple 5 V / 2 A supply.
AC measurement spans 90–265 V up to 10 Arms (scalable) with harmonic analysis to the 23rd order; DC measurement covers 1–400 V up to 10 A, all within < 5% error.
At a glance
- Input
- 5 V / 2 A supply
- Weight
- 100 g
5 V / 2 A
Supply
90–265 V
AC voltage range
10 Arms max (scalable)
AC operating current
47–63 Hz
AC frequency
02 /Engineering detail
What it does and how
Applications
APP- Power-quality testing and validation
- R&D bench measurement
- Energy-consumption monitoring
Technologies
TECH- Harmonic analysis up to the 23rd order
- Combined AC and DC measurement
Benefits
BEN- Six-in-one measurement: V, I, power, PF, THD, energy
- Scalable current range and harmonic order
- < 5% measurement error
05 /Build & integration
Mechanical, environmental & I/O
Mechanical
- Weight
- 100 g
Interface / I/O
- Measured parameters
- V · I · Power · PF · THD · Energy
07 /Documentation
Technical documents
09 /Next step
Need the DAQ Power Quality Analyzer (PT400) tailored to your spec?
We adapt power stage, magnetics and protection to your envelope — from sample to volume production.
