Mockingbird eScooter BLDC Inverter
R&D project: high-performance BLDC motor inverter for electric scooters.
7500 W peak
Power rating
Specifications
- Input voltage
- 61 – 99 VDC
- Peak power
- 7500 W
- Continuous power
- 3500 W
- Peak motor current
- 330 A
- Peak torque
- 75 Nm
01 /Overview
Product details
R&D project: high-performance BLDC motor inverter for electric scooters.
High peak power (7500 W) with 3500 W continuous rating. Strong peak torque (75 Nm) for responsive acceleration. Integrated vehicle communication and control.
At a glance
- Topology
- 3-phase BLDC inverter
Configurations
Orderable part numbers
Pick a configuration by power, battery voltage, current and control scheme — each row is an orderable KIMSEN part number.
KSMC
Family
-
800…3500
Power (W)
–
VV
Voltage
–
AA
Current
–
S / F
S=6-STEP · F=FOC
Power
Control11 / 11 configs
800 W3 configs
1500 W2 configs
2500 W3 configs
7500 W peak
Power rating
61 – 99 VDC
Input voltage
7500 W
Peak power
3500 W
Continuous power
02 /Engineering detail
What it does and how
Applications
APP- BLDC traction inverter for electric scooters
- High-current motor drive for personal e-mobility
Technologies
TECH- Three-phase BLDC inverter with field-oriented control
- High-current power stage delivering 330 A peak motor current
- CAN-bus vehicle integration
Benefits
BEN- High peak power (7500 W) with 3500 W continuous rating
- Strong peak torque (75 Nm) for responsive acceleration
- Integrated vehicle communication and control
03 /How it works

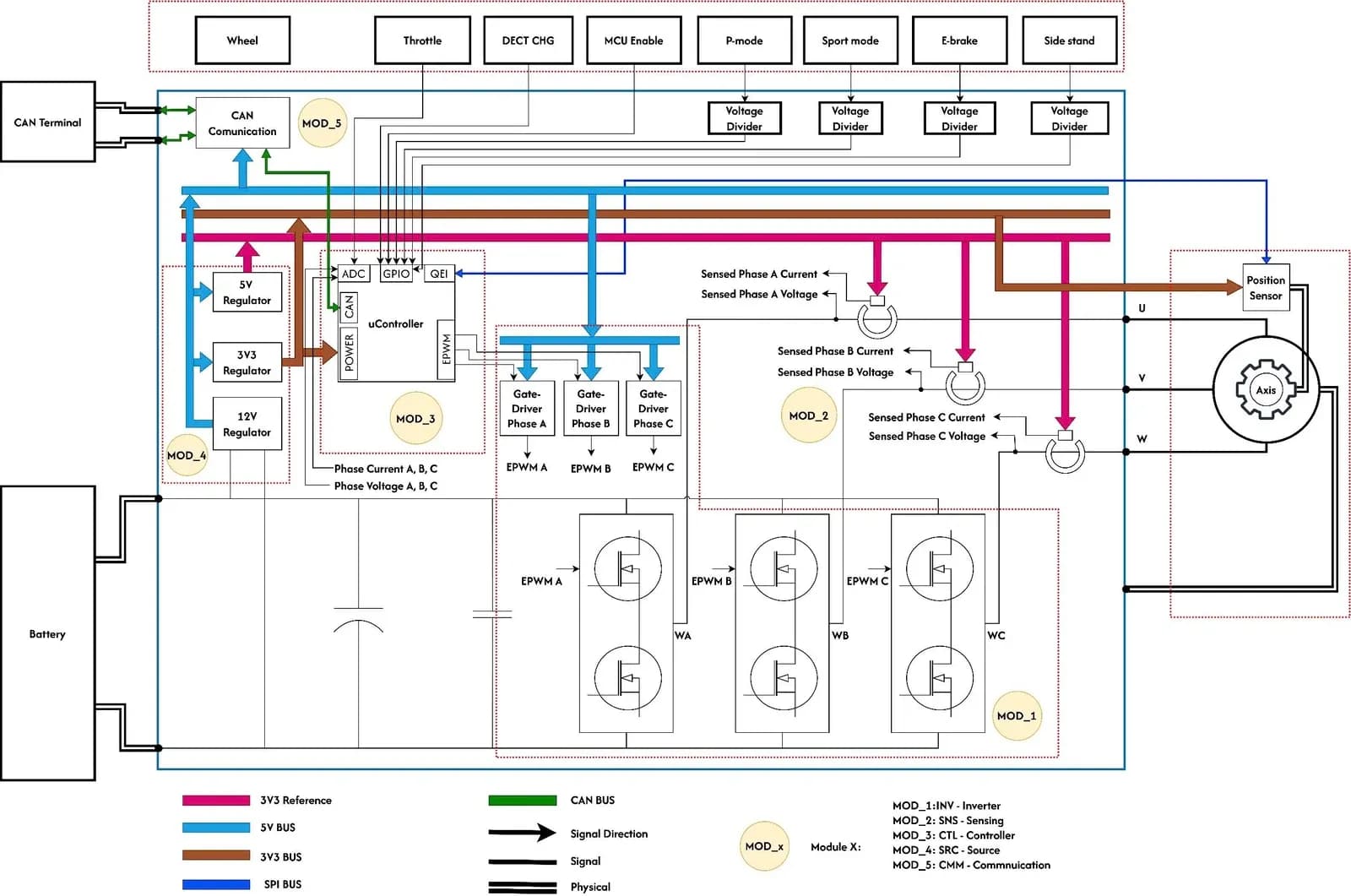

Block diagram
07 /Documentation
Technical documents
09 /Next step
Need the Mockingbird eScooter BLDC Inverter tailored to your spec?
We adapt power stage, magnetics and protection to your envelope — from sample to volume production.
