EV InfrastructureR&DRef. phoenix-battery-swap-station

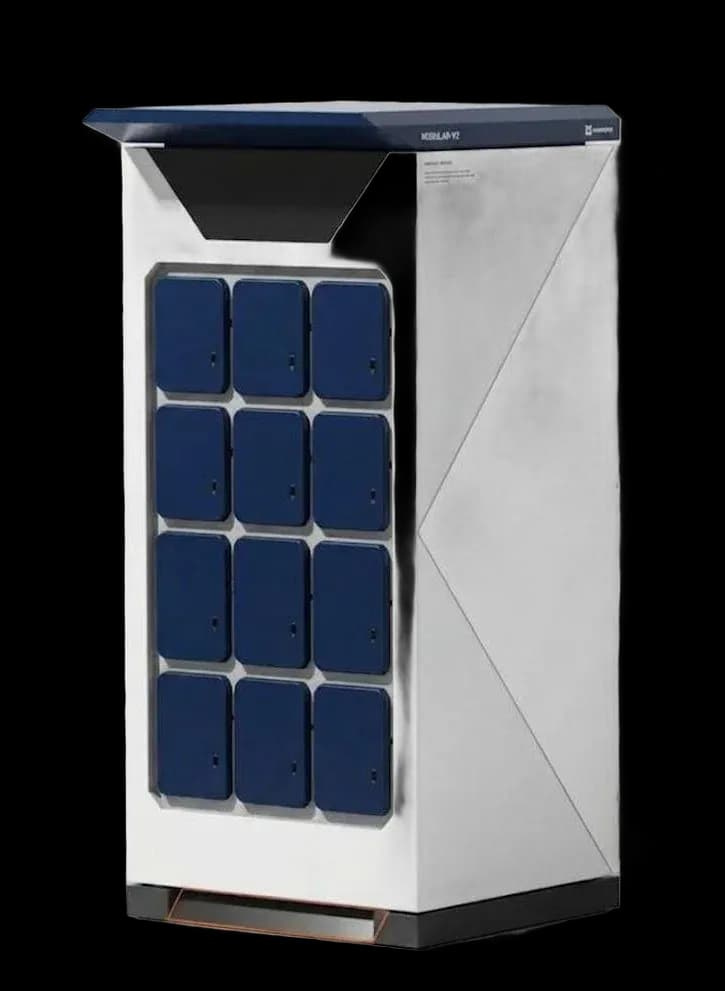

Phoenix Battery Swapping Station
Multi-voltage battery swap & charge station with app, IoT and payment.
840 W per slot
Power rating
94%
Peak efficiency
Specifications
- Input voltage
- 90–265 VAC
- Input frequency
- 47–63 Hz
- Power factor
- > 0.99 @ 50% load
- Charging voltage
- 36 / 48 / 60 / 72 VDC
- Charging current
- 10 A max
- Charging power
- 840 W max
- Efficiency
- up to 94%
- Charging profile
- CC / CV
01 /Overview
Product details
Phoenix is a battery swapping and charging station for electric two-wheelers, charging packs at 36, 48, 60 or 72 V up to 840 W per slot from a universal AC line with > 0.99 power factor.
It integrates a mobile app, on-station HMI, IoT connectivity and payment, with CC/CV charging, fan cooling and a full SCP/OCP/OTP/OVP/UVP protection set. Compliance targets IEC 62840 / 61851 safety and IEC 61000 EMC.
At a glance
- Input
- 90–265 VAC
- Output
- 36/48/60/72 V, ≤ 10 A
- Cooling
- Forced air (fan)
- Operating temp.
- +25 °C to +55 °C
840 W per slot
Power rating
94%
Peak efficiency
90–265 VAC
Input voltage
47–63 Hz
Input frequency
02 /Engineering detail
What it does and how
Applications
APP- Electric two-wheeler battery swapping
- E-mobility fleet charging infrastructure
Technologies
TECH- CC/CV multi-voltage charging
- IoT connectivity with app and HMI control
- Integrated payment system
Benefits
BEN- Efficiency up to 94% with > 0.99 power factor
- SCP / OCP / OTP / OVP / UVP protection
- Supports 36–72 V battery formats in one station
05 /Build & integration
Mechanical, environmental & I/O
Environmental
- Operating temperature
- +25 °C to +55 °C
- Compliance
- IEC 62840 / 61851 · CISPR32 Class B
Interface / I/O
- Communication
- CANbus v2.0 (optional)
- Connectivity
- Mobile app · HMI · IoT
- Payment
- Integrated
07 /Documentation
Technical documents
09 /Next step
Need the Phoenix Battery Swapping Station tailored to your spec?
We adapt power stage, magnetics and protection to your envelope — from sample to volume production.
