E-mobility ChargersIn production★ FeaturedRef. pro-e

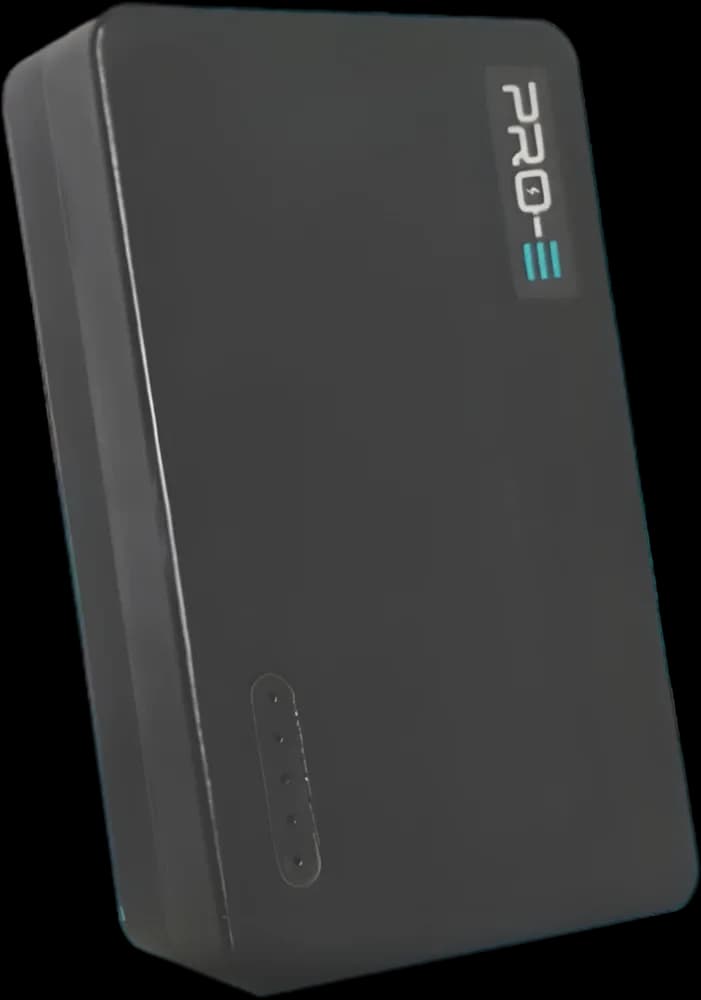

PRO-E
Fast, safe 300 W charger for 60 V lead-acid e-mobility batteries.
300 W
Power rating
92%
Peak efficiency
Specifications
- Output power
- Up to 300 W
- Battery type
- Lead-acid, 60 V
- Battery capacity
- 20 – 40 Ah
- Peak efficiency
- 92 %
- Thickness
- 35 mm
- Status indicators
- 5 LEDs
01 /Overview
Product details
Fast, safe 300 W charger for 60 V lead-acid e-mobility batteries.
High efficiency up to 92%, around 5% above comparable commercial chargers. Multiple protections: over-temperature, over-current, over-voltage, short-circuit and reverse-polarity. Slim 35 mm-thick enclosure for convenient handling. Thermal management lets it charge safely in hot conditions or inside a closed scooter trunk. 5 status LEDs make the charge state and faults easy to read.
At a glance
- Topology
- AC-DC battery charger
300 W
Power rating
92%
Peak efficiency
Up to 300 W
Output power
Lead-acid, 60 V
Battery type
02 /Engineering detail
What it does and how
Applications
APP- Electric motorcycles and e-bikes using 60 V lead-acid batteries (20 – 40 Ah)
- Other personal electric vehicles
Technologies
TECH- Smart four-stage charging that automatically regulates charge current and voltage
- Planar-magnetics design that shrinks the charger while raising efficiency and power density
- LLC resonant converter operating at 200 – 500 kHz for higher efficiency and smaller passive components
- ARM Cortex-M0+ microcontroller running up to 80 MHz for reliable, complex control
- Advanced control that reduces charge-current ripple to extend battery life
Benefits
BEN- High efficiency up to 92%, around 5% above comparable commercial chargers
- Multiple protections: over-temperature, over-current, over-voltage, short-circuit and reverse-polarity
- Slim 35 mm-thick enclosure for convenient handling
- Thermal management lets it charge safely in hot conditions or inside a closed scooter trunk
- 5 status LEDs make the charge state and faults easy to read
07 /Documentation
Technical documents
09 /Next step
Need the PRO-E tailored to your spec?
We adapt power stage, magnetics and protection to your envelope — from sample to volume production.
