LadyBug 840 W eScooter Charger
R&D project: 840 W battery charger for electric scooters.
840 W
Power rating
> 92%
Peak efficiency
Specifications
- Output power
- 840 W
- Battery chemistry
- LFP
- Nominal battery voltage
- 72 V
- Battery capacity
- 20 / 30 / 40 Ah
- Charging voltage
- 40 – 84 VDC
- Charging current
- Up to 10 A
- Peak efficiency
- > 92 %
01 /Overview
Product details
R&D project: 840 W battery charger for electric scooters.
Supports a wide range of common eBike battery configurations. Optional BMS integration over CAN bus. High-power-density charging design.
At a glance
- Topology
- AC-DC battery charger
840 W
Power rating
> 92%
Peak efficiency
LFP
Battery chemistry
72 V
Nominal battery voltage
02 /Engineering detail
What it does and how
Applications
APP- Charging LFP battery packs for electric scooters and e-bikes
- 48 V / 60 V / 72 V e-mobility platforms
Technologies
TECH- CC/CV charging profile
- Optional CAN bus 2.0 BMS communication
- Planar-magnetics power conversion
Benefits
BEN- Supports a wide range of common eBike battery configurations
- Optional BMS integration over CAN bus
- High-power-density charging design
03 /How it works

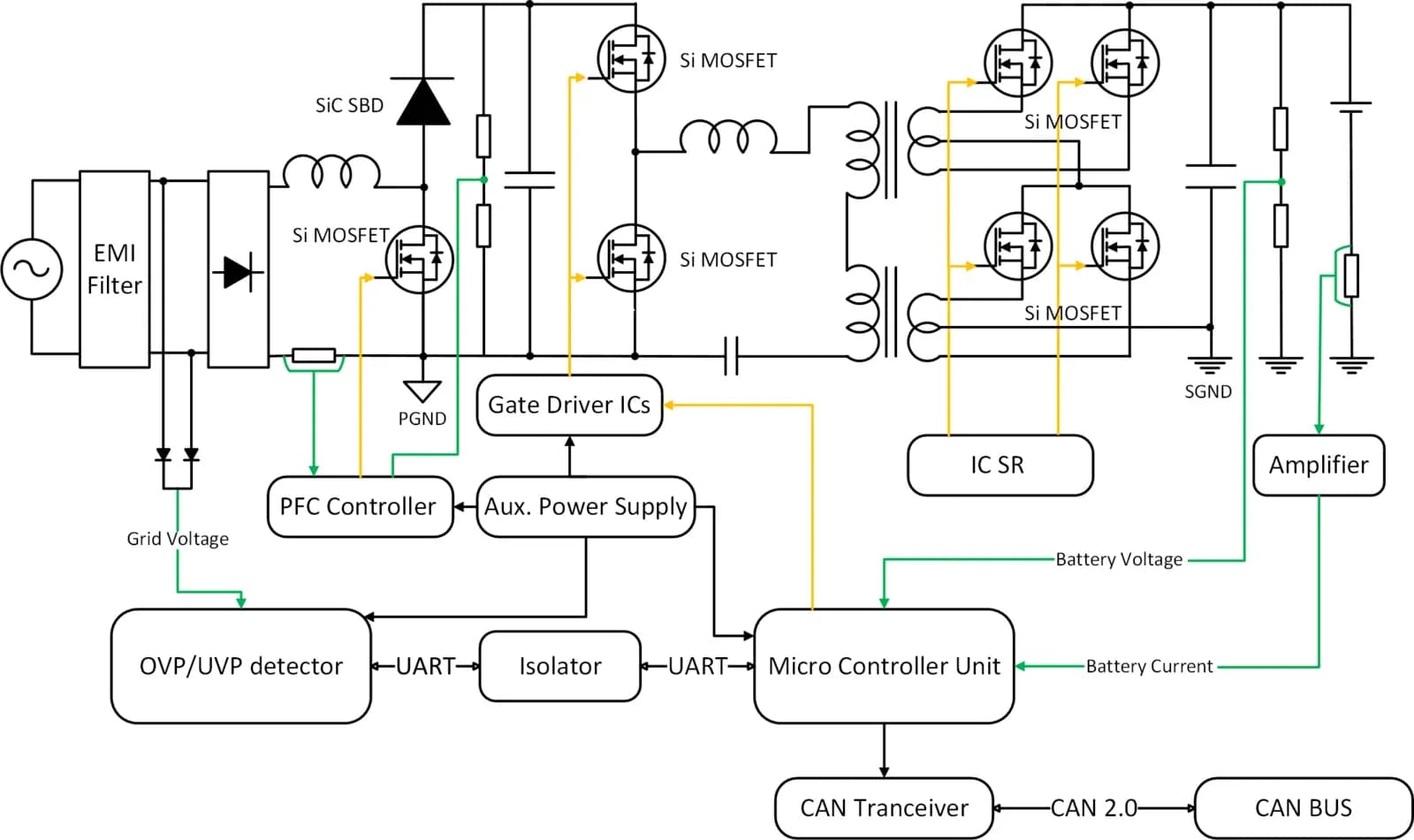

Block diagram
07 /Documentation
Technical documents
09 /Next step
Need the LadyBug 840 W eScooter Charger tailored to your spec?
We adapt power stage, magnetics and protection to your envelope — from sample to volume production.
