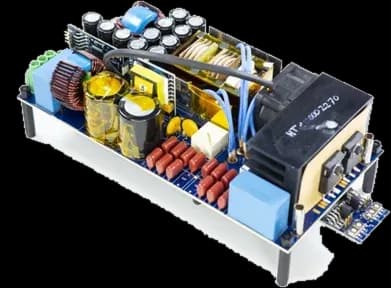

Nika 3.3 kW AC-DC EV Charger Module
3.3 kW single-phase off-board EV charger module (IEC 61851).
3.3 kW
Power rating
> 93%
Peak efficiency
Specifications
- Input voltage
- 220 VAC ± 20% (180–265)
- Input frequency
- 50 / 60 Hz
- Max input current
- 16 A
- Power factor
- > 0.99 @ > 50% load
- Input THD
- < 5% @ > 50% load
- Output voltage
- 200–500 VDC
- Max output current
- 15 A
- Output power
- 3.3 kW
- Efficiency
- > 93%
- Charge mode
- CC / CV
01 /Overview
Product details
Nika is a 3.3 kW single-phase off-board EV charger module delivering a wide 200–500 VDC output at up to 15 A from a 220 VAC ± 20% grid input, designed to IEC 61851.
High power factor (> 0.99) and low input THD (< 5%) keep it grid-friendly, with CC/CV charging, isolated CAN 2.0 communication, LED status and forced-air cooling. A full protection suite and 2 kVAC isolation target Class I safety.
At a glance
- Input
- 180–265 VAC, 1-phase
- Output
- 200–500 VDC / 15 A
- Isolation
- 2 kVAC (1 min)
- Cooling
- Forced air
- Operating temp.
- −30 °C to +50 °C
3.3 kW
Power rating
> 93%
Peak efficiency
220 VAC ± 20% (180–265)
Input voltage
50 / 60 Hz
Input frequency
02 /Engineering detail
What it does and how
Applications
APP- Off-board EV charging modules
- DC charging stations (IEC 61851)
Technologies
TECH- Active PFC with low input THD
- Isolated CAN 2.0 communication
Benefits
BEN- Wide 200–500 VDC output at > 93% efficiency
- > 0.99 power factor, < 5% input THD
- Comprehensive input/output OV/UV/OC, OTP and SCP protection
- Class I safety with UL94-V0 enclosure rating
05 /Build & integration
Mechanical, environmental & I/O
Mechanical
- Cooling
- Forced air
Environmental
- Dielectric strength
- 2 kVAC (1 min)
- Insulation resistance
- ≥ 10 MΩ @ 500 VDC
- Operating temperature
- −30 °C to +50 °C
- Storage temperature
- −40 °C to +70 °C
- Altitude
- < 2000 m
Interface / I/O
- Communication
- Isolated CAN 2.0
- Display
- LED status indicators
07 /Documentation
Technical documents
